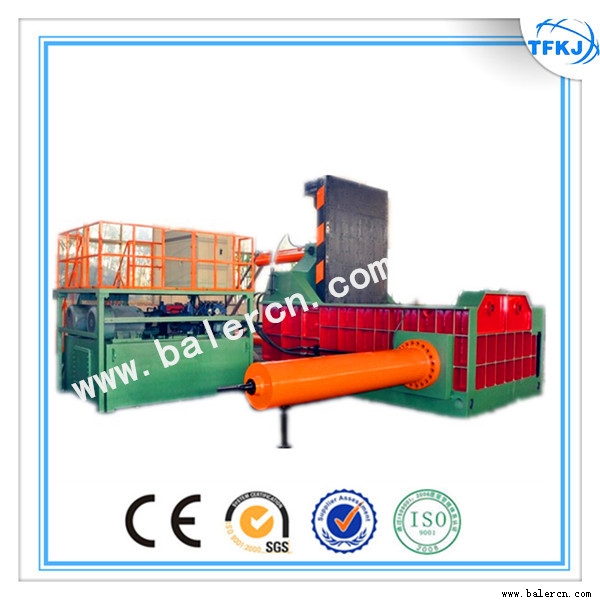

Location:Home >Y81T-3150 Hydraulic scrap metal press machineY81T-3150 Hydraulic scrap metal press machine
Applications:
Y81 series of hydraulic metal balers are applicable in steel plants,recycling companies,ferrous & non-ferrous smelting industry to press metal scraps(steel,copper,aluminum,stainless steel,discarded automobiles)into acceptable fumace charges(shapes:cuboid;cylinder or octagon),so as to reduce cost of transportation,to increase speed of fumace charging.
Features:
1)Hydraulic drive for all machine types,manual valve control or PLC control.
2)Bale-discharging:"turn-out","push-out","forward-out" or manual discharging.
3)No footing bolts needed in installation;diesel engine can be equipped for power.
4)Baling force 10 grades from 63 to 400 tons;productivity from 4 to 40 tons per shift(8 hours)
Y81 Series Hydraulic Scrap Metal Baler No. Type Nominal Force (KN) Power (KW) Feed Box Size (mm) Bale Size (mm) Productivity (kg/h) Operation 1 Y81-1250 1250 15 1200*700*600 300*300 800-1500 Manual or PLC 2 Y81Q-1350 1350 22 1400*600*600 600*240 1500-2200 Manual or PLC 3 Y81 1600 22 1600*1000*700 350*350 2000-3000 Manual or PLC 4 Y81-1600B 1600 22 1600*1200*800 400*400 2000-3000 Manual or PLC 5 Y81 2000 30 1600*1200*800 400*400 2000-3000 Manual or PLC 6 Y81-2000B 2000 37 1800*1400*900 450*450 2500-3500 Manual or PLC 7 Y81 2500 44 1800*1400*900 450*450 3000-5000 Manual or PLC 8 Y81-2500B 2500 44 2000*1400*900 500*500 3000-5000 Manual or PLC 9 Y81 2500 60 2000*1750*1000 500*500 3500-5000 Manual or PLC 10 Y81 3150 60 2000*1400*1000 500*500 3500-5000 Manual or PLC 11 Y81-3150B 3150 60/66 2000*1750*1200 500*500 3500-5000 Manual or PLC 12 Y81 3150 90 2600*2000*1200 550*550 4000-7000 Manual or PLC 13 Y81 4000 66 2000*1600*1100 550*550 4000-7000 Manual or PLC 14 Y81-4000B 4000 110 2600*1750*1200 550*550 5000-8000 Manual or PLC 15 Y81 4000 90 3000*2000*1200 600*600 6000-8000 Manual or PLC 16 Y81-6000 6000 135 5000*2000*1200 700*700 8000-10000 Manual or PLC
